T Nut Sizes
Standard metric T-slots and T-nuts

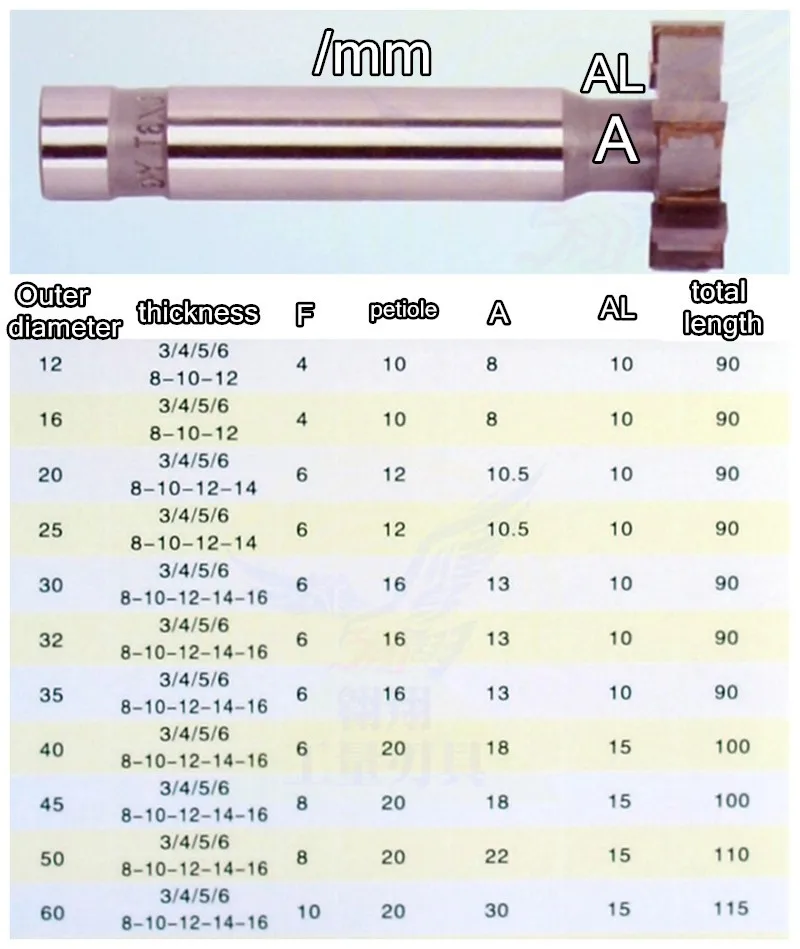

Minimum Size Limits:. 33' fork length Daily Recreational Bag Limit:. Atlantic - 1 per harvester not to exceed 6 per vessel. Gulf - 1 per harvester, not to exceed 2 per vessel. Minimum Size Limits:. 18' Daily Recreational Bag Limit:. 2 per harvester Remarks. Hook and line only. No snatch hooks. Style: Bolt Size Cut Diameter, Inch: 21/32' Cut Diameter, Metric: 16.67 Cut Width. Bolt Size (d) T-Slot Size (a) L: Part. E: k: b: a1: Bolt Size (d) T-Slot Size (a) L: Part. E: k: b: a1: M06: 6: 25: 787-0606-025: 10: 4: 15: 5,7: M18: 20.
Standard Metric T-Slots
Standard T Slot Sizes
| Size | s1 (mm) | t1 (mm) | a1 (mm) | h1 (mm) |
|---|---|---|---|---|
| M4 | 5 | 10 - 11 | 3.5 - 4.5 | 8 - 10 |
| M5 | 6 | 11 - 12.5 | 5 - 6 | 11 - 13 |
| M6 | 8 | 14.5 - 16 | 7 - 8 | 15 - 18 |
| M8 | 10 | 16 - 18 | 7 - 8 | 17 - 21 |
| M10 | 12 | 19 - 21 | 8 -9 | 20 - 25 |
| M12 | 14 | 23 - 25 | 9 - 11 | 23 - 28 |
| M16 | 18 | 30 - 32 | 12 - 14 | 30 - 36 |
T Slot Size Chart
- 1 inch = 25.4 mm
Standard Metric T-Nuts
| Size | s2 (mm) | t2 (mm) | a2 (mm) | h2 (mm) |
|---|---|---|---|---|
| M4 | 5 | 9 | 2.5 | 6 |
| M5 | 6 | 10 | 4 | 8 |
| M6 | 8 | 13 | 6 | 10 |
| M8 | 10 | 15 | 6 | 12 |
| M10 | 12 | 18 | 7 | 16 |
| M12 | 14 | 22 | 8 | 19 |
| M16 | 18 | 28 | 10 | 25 |
Related Topics
- Fasteners - Bolts, nuts and threaded rods - torque, tension and loads
Related Documents
- ISO 724 - Metric Threads - Dimensions of metric threads according ISO 724
- Metric Bolt Head and Wrench Size - ANSI/SO, DIN and JIS bolts
